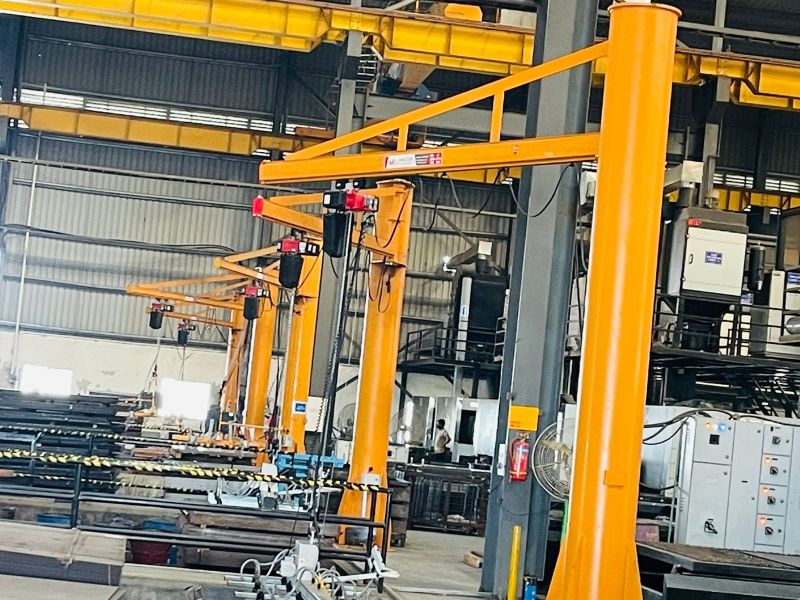

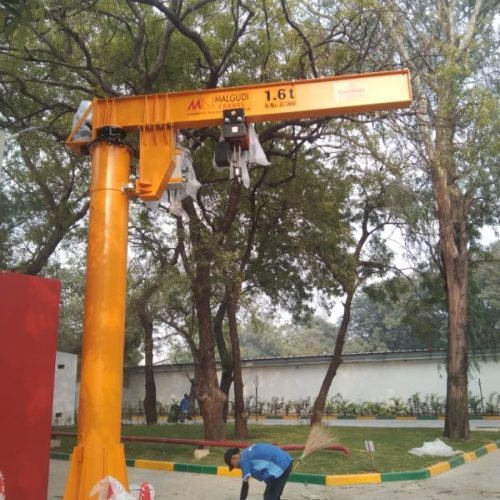

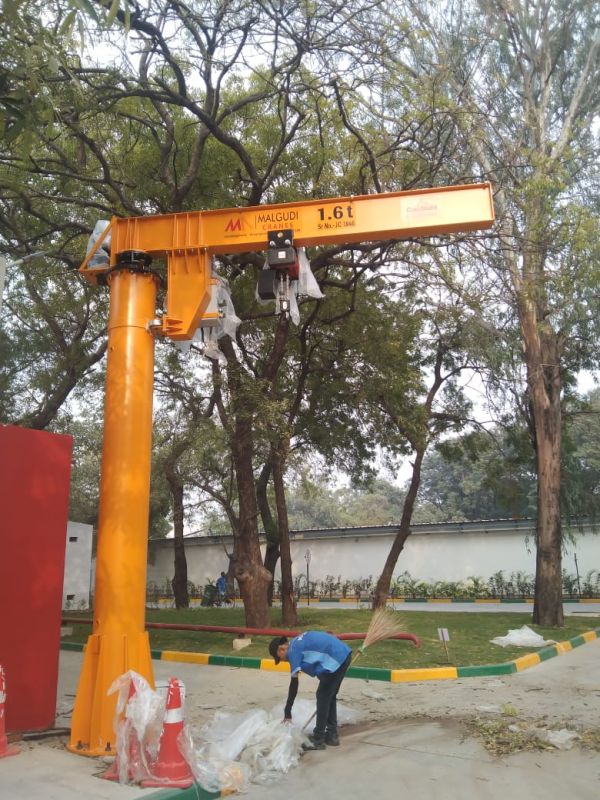

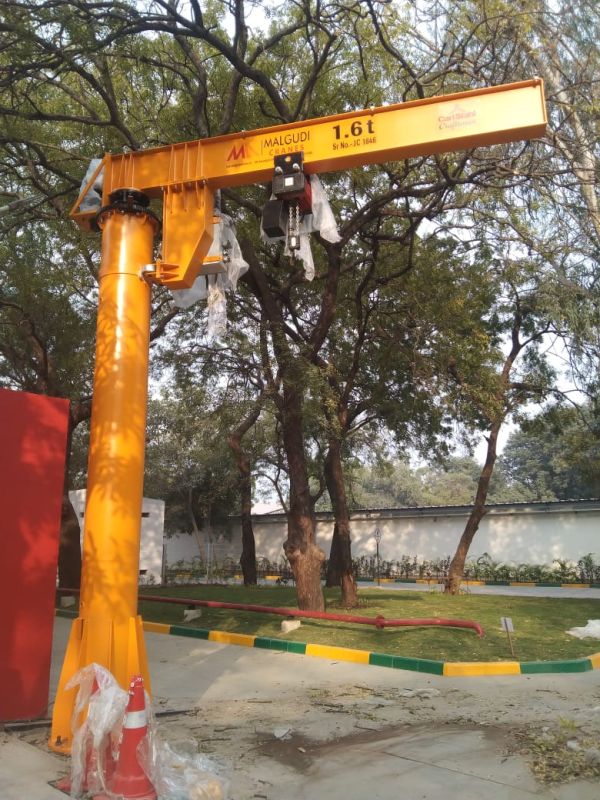

Jib Cranes


Jib Cranes

We are a prominent Jib Cranes Manufacturer recognized as an Exporter and Supplier in India and around the world. Designing and production of the Jib Cranes is done to give different types as per the capacity. Made using heavy-duty components, the Jib Cranes are made to have a long functional life and offer reliable performance in handling material safely for a long time.

Construction
  • Mast
    • Carbon steel pipe of various sections
    • Thickness : As per loading conditions, boom length, height etc.
  • Arm
    • section or as per specifications
    • Also made from Zero friction rail to suit ergonomic handling systems
  • Vertical Arm
    • Standard sections or built up sections
    • As per capacity and sizes of crane
  • Element
    • Made up of robust bearing assembly
    • Less maintenance required
  • Guide Ring
    • 360o rotation type jib crane
    • Vertical arm rotates over this
    • Requires regular cleaning and greasing
  • Guide Wheel Assembly
    • Connected to the vertical arm that rotates on guide ring
    • Needs regular cleaning and greasing
  • Span
    • The arm length of crane
  • Hook Height
    • When it is in IOD position, it stands for maximum height of hook hoist
  • Overall Height
    • Maximum crane height over which no crane part is extended
  • Base
    • M.S. Plate, with size as per crane size and capacity
    • Foundation bolts or Chemical Anchoring can be provided
  • Mechanical Stoppers
    • To restrict arm rotation to operating area


Installation (Plumbing Mast)
  • Usually installation is done using chemical anchors bolts and by foundation bolts in heavy-duty cranes
  • Drop plumb line from top of mast, using fixture or equivalent
  • At point 50 mm below the top mast plate, set plumb line a distance of 100 mm from the surface of the mast pipe
  • At point "Y", 1500 mm below point "X" (approximately where rollers will contact mast pipe), the distance between plumb line and the surface of the mast pipe should also be 100 mm
  • When mast is plumb and grout (FS300l) has cured; fully tighten the anchor bolt hardware
  • Verify mast is plumb or not
  • To prevents doom drifting Mast should be plumb



Salient Features
  • Standard Variable Frequency Drive (VFD)
  • VFD ideal for single or multiple speed requirements
  • Excellent load control is offered by VFD
  • Positioning from slowest to maximum speed is easily possible
  • Up to 25 times smoother than ballast resistor controls
  • Produces very less heat
  • Accurate starting and stopping
  • Easily adjustable speed control
  • Control panel with simple keypad for adjusting
  • Acceleration rate
  • Deceleration rate
  • Rotation speed
  • Low cost of maintenance
  • No need for magnetic reversing contractors
  • Reduces wearable components
  • Panel wiring dig and VFD Manual is provided with crane

Maintenance Instructions
  • Periodicity greasing of main elements in between 6 to 12 months as per operational frequency
  • Checking of foundation bolt fittings should be done at fixed intervals to avoid arm rotation imbalance
  • Greasing of Guide Ring should be done on a monthly basis or earlier
  • Loosening of Gear meter bolts must be checked to see gear and pinion alignment is proper or not

Demanded by
  • Steel Plants
  • Construction industry
  • Chemical industry
  • Refineries
  • Defense sector
  • Mining industry
  • Nuclear power plants

To enquire about the desired product(s), just check the box and then click “Enquiry Now” button which is provided below.


Standerd Jib Crane

Standerd Jib Crane
  • Most Flexible Handling System for the given work station
  • Designed for Handling Medium & Heavy Loads.
  • Boom is usually of STD. I beam construction, rotates for 3500, & can be restricted to any degree of rotation with mechanical stoppers.
  • Can operate with out powerized packag up to 2000 kg.
  • Most flexible handling system for the given work station.
  • Used with Electric Chain Hoist & Manual Chain Pulleys.
  • A capacity varies from 50 kg to 5000 kg.
  • Moduler built for easy installation & placement.
  • Available with various Boom Length & various Hook Height.
  • Most of the Jib Cranes installed with chemical anchoring even up to 2000 kg.capacity. in dependance of Boom Length & the Floor Concrete Quality.
  • Availble in yellow colour & can be painted any colour on demand.


Standerd Jib Crane with Powerized Boom Rotation

Standerd Jib Crane with Powerized Boom Rotation
  • Most Flexible Handling System for the given work station.
  • Designed for Handling Medium & Heavy Loads.
  • Boom is usually of STD. I beam construction, rotates for 3500, & can be restricted to any degree of rotation with mechanical stoppers.
  • All movements are hosed in single pendent, boom ratation in with Positive Gear Drive Arrangement with VFD Control Package for variable boom ratation speed .
  • Used with Electric Chain Hoist & Manual Chain Pulleys.
  • A capacity varies from 1500 kg to 5000 kg.
  • Moduler built for easy installation & placement.
  • Available with various Boom Length & Various Hook Height.
  • Most of the Jib Cranes installed with chemical anchoring even up to 2000 kg.capacity. in dependance of Boom Length & the Floor Concrete Quality othewise on the pre-installed foundation bolts.
  • Availble in yellow colour & can be painted any colour on demand.

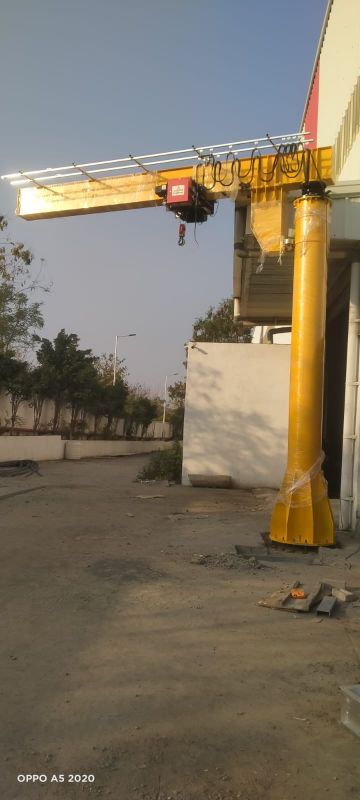

Out Door Jib Crane with Powerized Boom Rotation

Out Door Jib Crane with Powerized Boom Rotation
  • Most Flexible Handling System for the given work station.
  • 2 Designed for Handling Medium & Heavy Loads.
  • Boom is usually of STD. I beam construction, rotates for 3500, & can be restricted to any degree of rotation with mechanical stoppers.
  • All movements are hosed in single pendent, boom ratation in with Positive Gear Drive Arrangement with VFD Control Package for variable boom ratation speed .
  • Used with Electric Chain Hoist & Manual Chain Pulleys.
  • A capacity varies from 1500 kg to 5000 kg.
  • Moduler built for easy installation & placement.
  • Available with various Boom Length & Various Hook Height.
  • Most of the Jib Cranes installed with chemical anchoring even up to 2000 kg.capacity. in dependance of Boom Length & the Floor Concrete Quality othewise on the pre-installed foundation bolts.
  • Availble in yellow colour & can be painted any colour on demand.

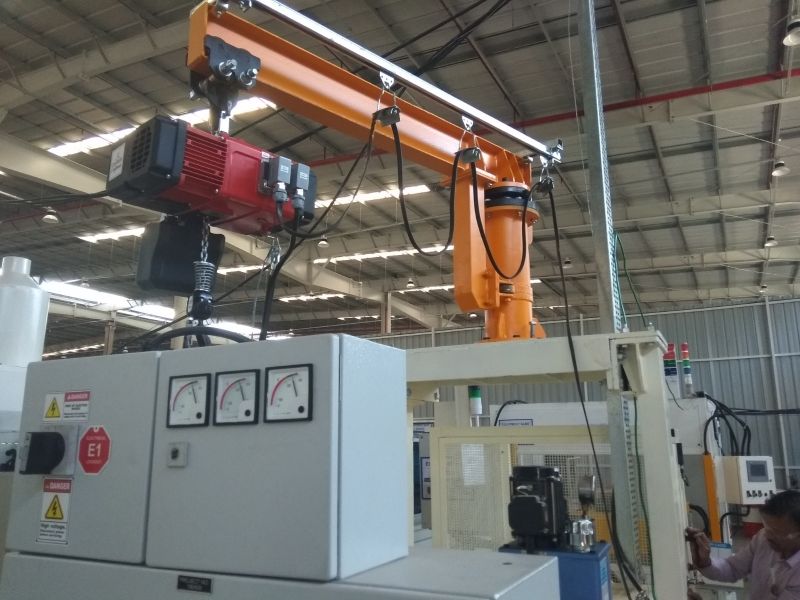

Jib Crane with Profile Section

Jib Crane with Profile Section
  • Most Flexible Handling System for the given work station
  • Designed for Handling Small & Medium Loads.
  • Boom is STD. profile section with Friction Less Push Pull Trolley with Delrin Wheels, rotates for 2700, & can be restricted to any degree of rotation with mechanical stoppers.
  • Used with Electric Chain Hoist, Manual Chain Pulleys & also with Air Balancers.
  • A capacity varies from 50 kg to 500 kg.
  • Moduler built for easy installation & placement.
  • Available with various Boom Length & Various Hook Height.
  • These Jib Cranes are installed with chemical anchoring .
  • Availble in yellow colour & can be painted any colour on demand.


Jib Crane with Profile Section Boom

Jib Crane with Profile Section Boom
  • Most Flexible Handling System for the given work station
  • Designed for Handling Medium & Heavy Loads.
  • Boom is Profile section supported with tubueler section, rotates for 3600, & can be restricted to any degree of rotation with mechanical stoppers.
  • Used with Electric Chain Hoist, Manual Chain Pulleys & also with Air Balancers.
  • A capacity varies from 50 kg to 500 kg.
  • Moduler built for easy installation & placement.
  • Available with various Boom Length & Various Hook Height.
  • These Jib Cranes are installed with chemical anchoring .
  • Availble in yellow colour & can be painted any colour on demand


Jib Crane with Sliding Boom Type

Jib Crane with Sliding Boom Type
  • Most Flexible Handling System for the given work station
  • Designed for Handling Medium Loads.
  • Boom is Profile section supported with tubueler section, rotates for 3600, & can be restricted to any degree of rotation with mechanical stoppers.
  • Used with Electric Chain Hoist, Manual Chain Pulleys & also with Air Balancers.
  • A capacity varies from 50 kg to 500 kg.
  • Moduler built for easy installation & placement.
  • Available with various Boom Length & Various Hook Height.
  • These Jib Cranes are installed with chemical anchoring .
  • Availble in yellow colour & can be painted any colour on demand


Folding Arm Jib Crane/Articulating Jib Crane

Folding Arm Jib Crane/Articulating Jib Crane
  • Most Flexible Handling System for the given work station
  • Designed for Handling Medium & Heavy Loads.
  • Boom is made out of profile section, rotates for 3600, & can be restricted to any degree of rotation with mechanical stoppers.
  • Used with Electric Chain Hoist, Manual Chain Pulleys & also with Air Balancers.
  • A capacity varies from 50 kg to 500 kg.
  • Moduler built for easy installation & placement.
  • Available with various Boom Length & Various Hook Height.
  • These Jib Cranes are installed with chemical anchoring .
  • Availble in yellow colour & can be painted any colour on demand
